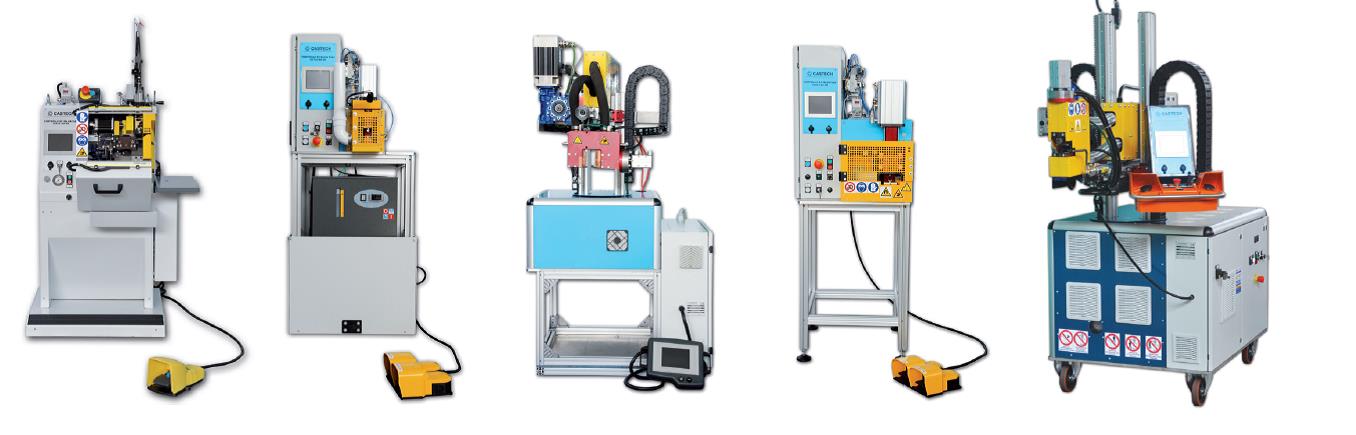

Stator Lead End Wires Thermal-Crimping Device

Stator enameled wire coils, lead wires and soldering to terminals.

This process is time-saving and reliable. No necessary to remove enamel coating on the copper wires. The equipment generates heat to vaporize the outer layer of the wire coating and to compress the wires together. To achieve the best performance for connection resistance and mechanical properties.

Thermocrimping Process: This process uses as a connection support a crimp made of tinned copper automatically formed with a special tool. The crimp is brought and held between two electrodes that, after placing wires and cable, starts to compress and remove the enamel to give the connection the best performance as electric resistance and mechanical features. This process is recommended to connect total sections up to 12mm2, where high productivity is necessary and where the range of connections is not so wide.

Thermalconnecting Process: This uses as a connection support a sleeve, tube or cable shoe. Once wires and cable are settled into the support, this has to be placed between two toolings and after that the process starts to remove the enamel to give the connection the best performance as electric resistance and mechanical features. This process is recommended to connect total sections up to 350 mm2 and where the range of connections can be very changeable and wide in order to number and diameter of wires.

Applications

Single Phase Motor	DC Motors	Electric Generator
Three Phases Motor	Transformer	Pumps and Submersible Pumps
Brushless Motor	Linear Motors	High frequency Transformer
Step Motor	Solar panels	Automotive Motors (full electric and hybrid)
ervo Motor	Traction Motors	Power inverters
Low Voltage Motor	Naval Generator	High frequency application
High Frequency Motor	oils	Wind Power Generator

---
